Working late?

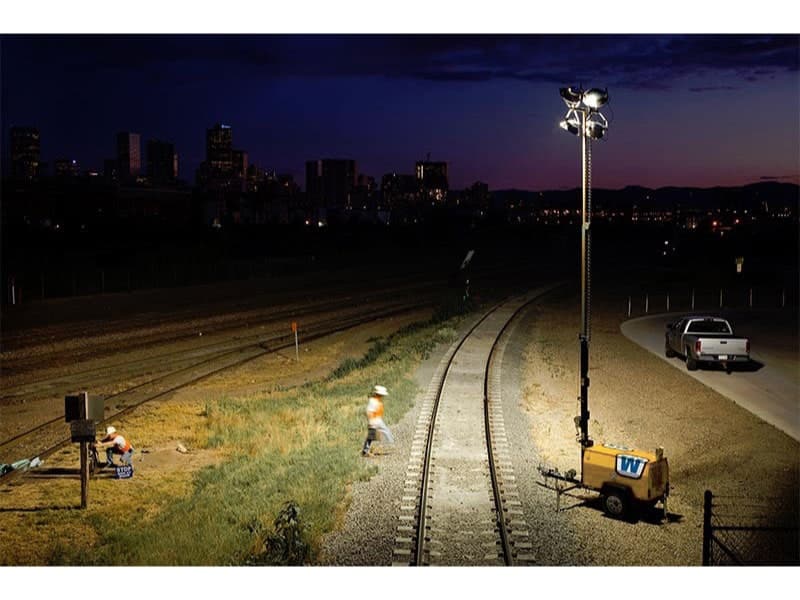

Light up your job site with Wanco Diesel Light Towers.

Not just another light tower, this lighting solution uses state-of-the-art technology to achieve the most efficient illumination, shining a uniform light pattern across the entire job site.

The telescoping tower is compact when stored, yet extends to 30 feet when deployed. The mast rotates 360 degrees and the four 1000W lights operate at any height, preventing the trailer from having to be moved frequently.

The system is powered by a rugged, low-speed, Tier 4 Final Kubota diesel engine. The Kubota engine provides trouble-free performance and greater longevity. It features improved cold weather starting and operation with a glow-plug pre-heating system, plus engine block and oil pan heaters. A top maintenance panel and gull-wing side doors provide unsurpassed engine accessibility.

For the brightest illumination and convenient, worry-free operation, rent a Wanco Diesel Light Tower from ESR today!

Lights and tower

• Four 1000W metal halide lamps
• High-intensity parabolic reflectors increase illumination and create a brighter, more uniform light pattern
• Each fixture can be aimed independently without the use of tools for greater flexibility and faster setup
• Telescoping tower extends to 30 feet and rotates 360 degrees
• Lights operate at any height, preventing the trailer from having to be moved frequently

Engine

• Rugged, low-RPM, Tier 4 Final diesel engine and high-quality four-pole generator for trouble-free performance and increased longevity
• Glow-plug preheat system, plus engine block and oil pan heaters, improve starting and service life in cold weather
• Automatic engine shutdown system protects engine from damage due to low oil pressure and high coolant temperature
• 30-gallon fuel tank provides extended runtimes of 60 to 70 hours between refuels
• Translucent polyethylene fuel tank is rupture resistant and offers an instant view of fuel level

Enclosure and trailer

• Powder-coated, steel enclosure for durability and weather resistance

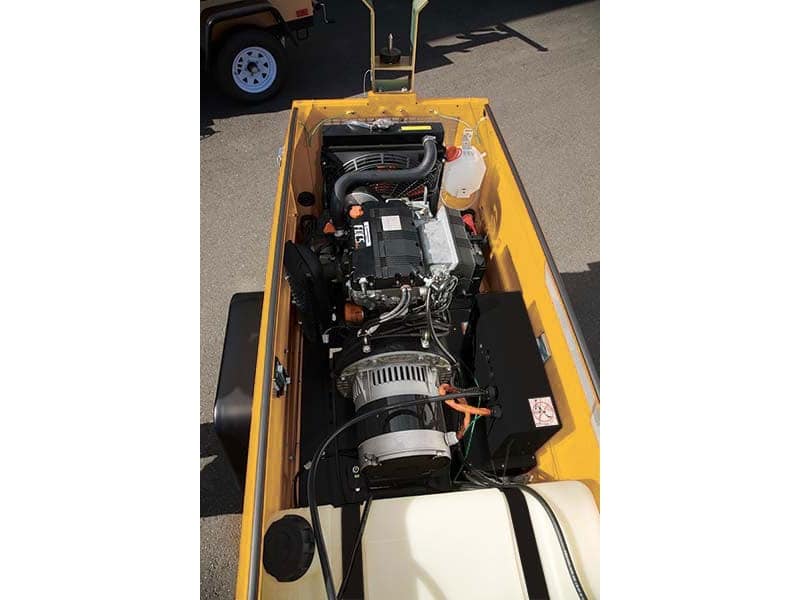

• Hinged top panel and gull-wing side doors provide easy access to engine, generator, and electrical components
• Control panel features an elapsed hour meter, convenience power outlet, and circuit breakers for on/off functionality and protection
• Combo type tow hitch for flexible transitions between 2-inch ball and 3-inch pintle hook towing systems

Specifications

Lights
Lamps	Four metal halide lamps
Wattage	1000W per lamp
Luminosity	Up to 0.5 fc at 7.5 acres (5.4 lm/m2 at 30,400 m2)
Output power
Output	6kW
Voltage	120V
Amperage	50A
Frequency	60 Hz
Voltage regulation	±5%, no load to full load
Power system
Engine	Kubota D1005
Engine type	Tier 4 Final diesel, 3-cylinder, 4-cycle
Engine speed	1800 rpm
Cold weather protection	Engine block heaterOil pan heaterGlow-plug pre-heat system
Generator type	Brushless
Battery	12V DC, 550 CCA
Fuel tank capacity	30 gallons (114 L)
Fuel consumption	0.44 gph (1.67 lph)
Runtime before refuel	60 to 70 hours (approx)
Enclosure/Trailer
Enclosure	Powder-coated steelLockable, weather-resistantHinged top-panel for access to engine, generator, and electrical components
Control panel	Elapsed hour meterConvenience power outletCircuit breakers for on/off functionality and protection
Tires	ST175 / 80D13
Tow hitch	Combo type for 2-inch ball, 3-inch pintle hook

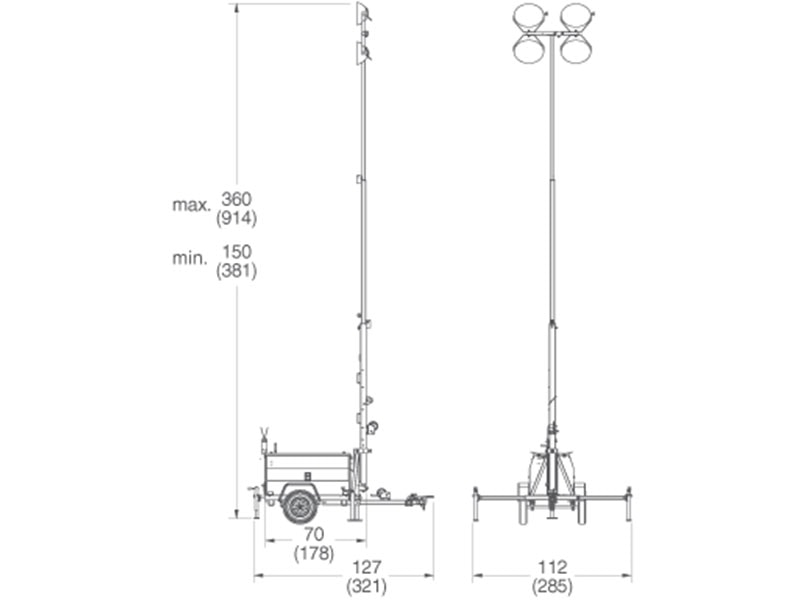

Dimensions
Deployed footprint (W x L)	112 x 127 in (285 x 321 cm)
Operating height	30 ft (9.14 m) Maximum 12.5 ft (3.81 m) Minimum
Dry weight	1580 lb (717 kg)
