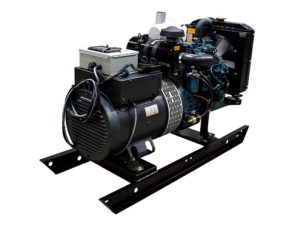

6KW Generator (KPG-06)

Details

Powered by a Kubota diesel engine, this durable generator set produces 6.0 kilowatts of prime power output. The engine and generator are directly coupled and mounted on a rugged steel skid. All components are suitable for prime or intermittent usage. The entire set is thoroughly load tested prior to shipment. UL approved construction.

Standard engine

  • Kubota diesel model D1005BG-3, in-line, three-cylinder engine
  • Mechanical speed governing provides > 5% speed regulation, no load to full load
  • EPA tier 4
  • Liquid cooled with industrial grade radiator and belt-driven blower fan

Controls & accessories

  • Key start panel with oil pressure, coolant temperature, hour meter, and glow plug indicator
  • Manual safety shutdow override, fuse protection
  • Safety shutdowns, energized-to-run, for low oil pressure/high coolant temperature
  • Four anti-vibration mounts between generator set and base frame
  • Electric fuel transfer and priming pump (12 VDC)
  • Battery cables for 12 VDC starting system

Specifications

Engine technical information
Manufacturer Kubota
Model D1005BG-3
Cylinders 3
Bore x Stroke 2.99 x 2.90 in
Displacement 1001cc (61.08 cu in)
Comp. ratio 24:0
Engine weight 242 lb dry
Fuel system
Fuel type #2 Diesel or #1 ULSD
Injection pump Bosch PFR
Nozzle type Throttle type
Transfer pump Electric, 12 VDC
Fuel lift 1 meter (3.3 ft)
Suction fitting 5/16″ push on
Return fitting 3/16″ push onOptional 1/4 in suction and return fittings on the skid.
Specific fuel consumption 0.66 gph @ full load0.35 gph @ half load(Actual fuel consumption varies with site conditions and fuel energy content.)
Lube oil system
Grade API classification CF or other approved.(See owner’s manual)
Capacity 1.3 US gal
Filter Full flow, spin on
Air intake system
Filter Replacement element
Combustion air 29.7 cfm
Total system restriction 20″ H20
DC Electrical system
Starter 12V, 1.0 kW
Alternator 12V, 30 Amp
Glow plugs location Combustion chambers
Battery required 12V 650 CCA equiv, min
Run solenoid 12V Energize to run
Ancillary equipment
Mounting Steel base with mounting holes
Isolators Four composite mounts
Generator technical information
Manufacturer Mecc Alte
Model ECP 28 (standard)
Construction Four pole, brushless, open drip-proof (IP23), single bearing
Excitation (std) Full wave bridge rectifier
Excitation (opt) “Excitation Boost System”(Provides up to 300% current for motor starting.)
Cooling air flow 286 cfm
Leads 4 or 12, application dependent
60 Hz voltages (continuous) 240 1-phase: 31.5 Amps208 3-phase: 26.3 Amps480 3-phase: 11.4 Amps
Power factor Single phase ratings @ 1.0 PFThree phase ratings @ 0.8 PF
Voltage reg. DSR digital type +/- 1% NL -> FL
Temperature rise 105C rise prime
Tel. interference THF <2%
Winding pitch Two thirds
Control system Self-excited
Cooling system
Radiator Finned tube type
Material Copper core, soldered tanks
Pressure 12.9 psi max
Fan type Blower, nylon
Water pump Gear case mounted
Type Centrifugal, belt drive
Thermostat Wax pellet type
Recommended coolant 50/50Use low silicate ethylene glycol and high quality water. Consult manufacturer for details.
Cooling air required 1126 cfm
Exhaust system
Muffler type Industrial grade
Mounting Vertical
Restriction 1.5 in Hg max
Weight & dimensions
Please contact salesperson for weight and dimensions.

Accessories

Coming soon…

Model #

KPG-06

Manufacturer

ESI

Category

Generators

Industry

Aviation, Construction, Emergency Prepardness, Lodges, Mining, Oil & Gas, Remote Logistics, Telecommunications

Available for Rent in ALASKA

No

Available for Rent in North Dakota

No

Available for Sale in Alaska

Yes

Available for Sale in North Dakota

Yes

9 Highlight Specs

Continuous Three-Phase Output (KVA): 9.5
Output Phase: 1Ø or 3Ø
Rated Speed (60hz): 1800 RPM
Engine: Kubota D1005
Emission Certification: EPA Tier 4 Final
Configuration: Open Skid
