6″ Water Pump
Details

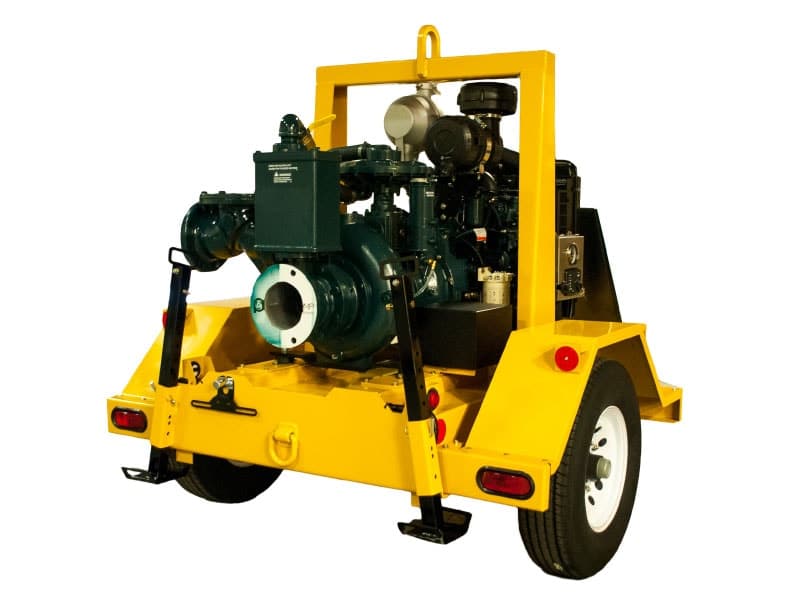

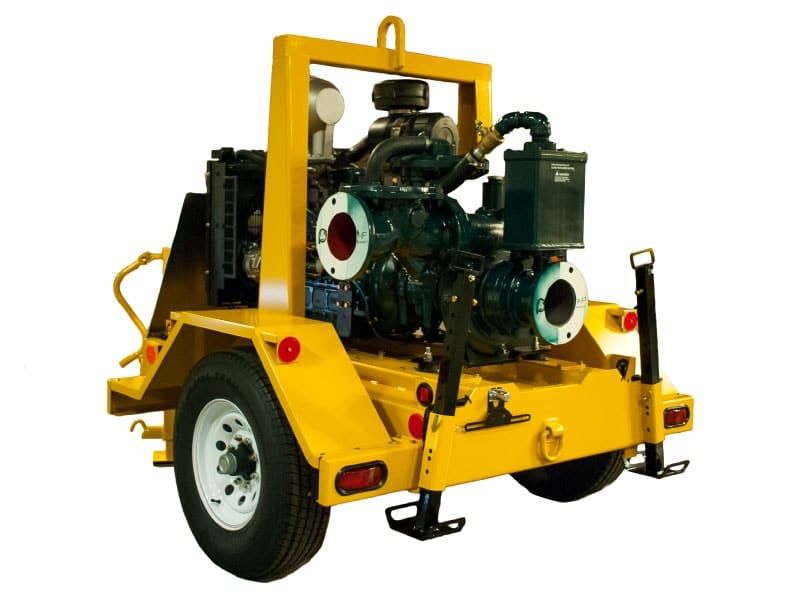

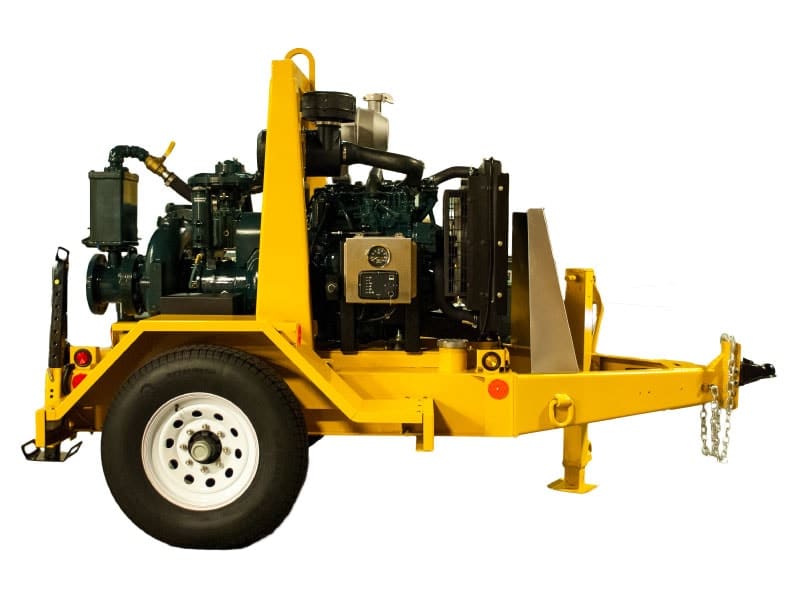

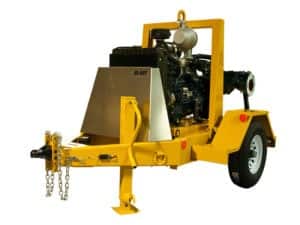

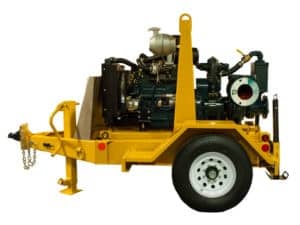

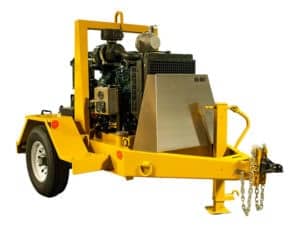

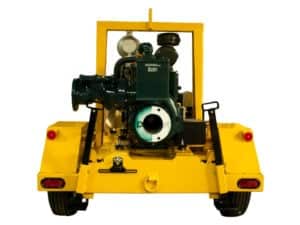

With the ESI 6-inch trailer-mounted pump set, we have paired a Pioneer centrifugal pump with a Kubota diesel engine to deliver outstanding power, performance, and durability.

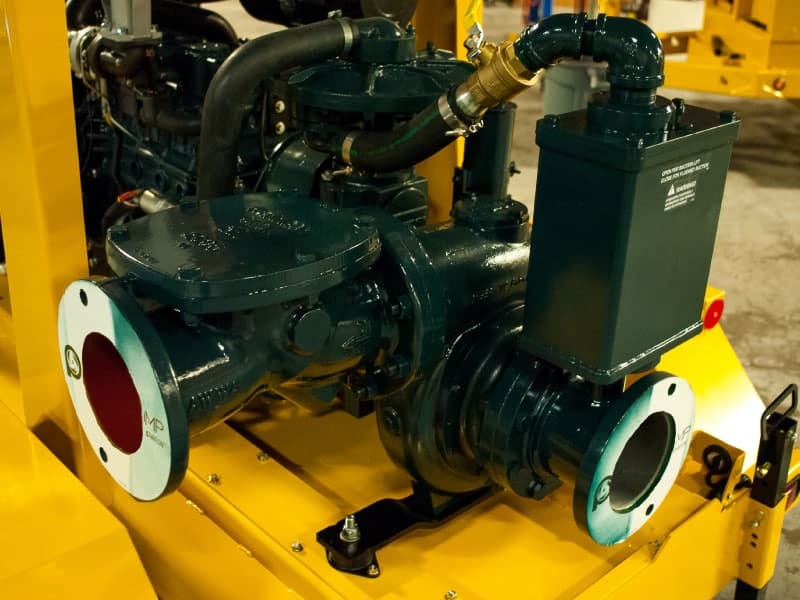

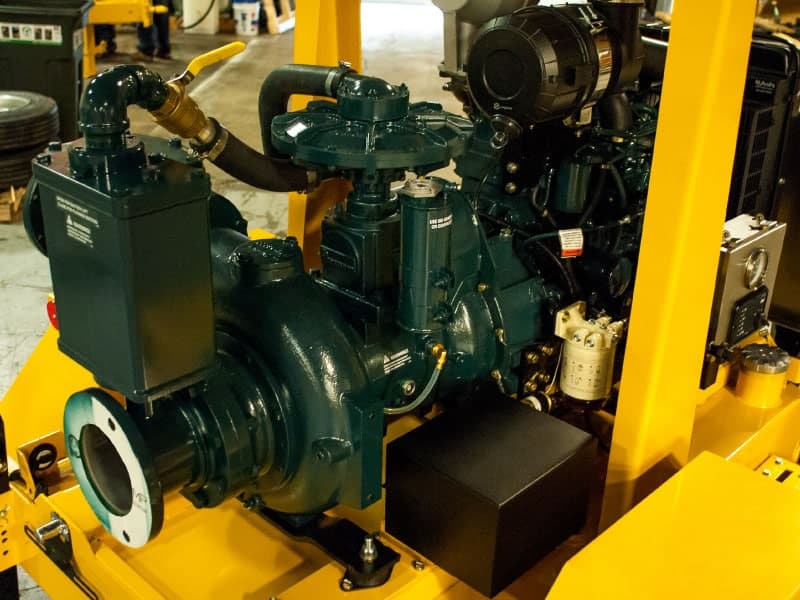

The Pioneer Prime 66S10 high-flow, ruggedized pump is designed to operate over a broad performance range while delivering oustandling suction and lift.The rugged construction and modular design provide reliability and flexibility in the most demanding applications.
Pioneer Prime series pumps are vacuum prime assisted and utilize Pioneer’s UltraPrime™ priming system. This advanced system is capable of rapid unattended priming and run-dry, heavy-duty solids handling for the ultimate in remote operation.
The pump is driven by a turbocharged, four-cycle, variable speed Kubota diesel engine that provides a maximum shaft power of 70 hp. Together, the Pioneer pump and Kubota engine deliver a maximum flow rate of 2600 gallons per minute at 2200 rpm, with a vertical lift of up to 140 feet.
Rent an ESI 6-inch pump today for a pump-trailer set that will never shy away from hard work!
Pump
- Pioneer Prime series pump
- 6-inch suction and discharge flanges
- Maximum flow rate of 2600 gallons per minute
- 3-inch solids handling capabilities for application flexibility
- Up to 140-foot lift to move liquid to higher discharge points
- Run-dry priming system and mechanical seal for run-dry operation
- UltraPrime™ priming system with vacuum assist pump
- Automatic self-priming in cases of lost suction
- Heavy-duty construction for reduced maintenance costs
- High efficiency design for reduced fuel costs
- Variable speed operation
Engine
- Kubota V3600T 4-cycle, turbocharged diesel engine
- Maximum shaft power of 70 hp
- Racor fuel filter with 2 Micron element

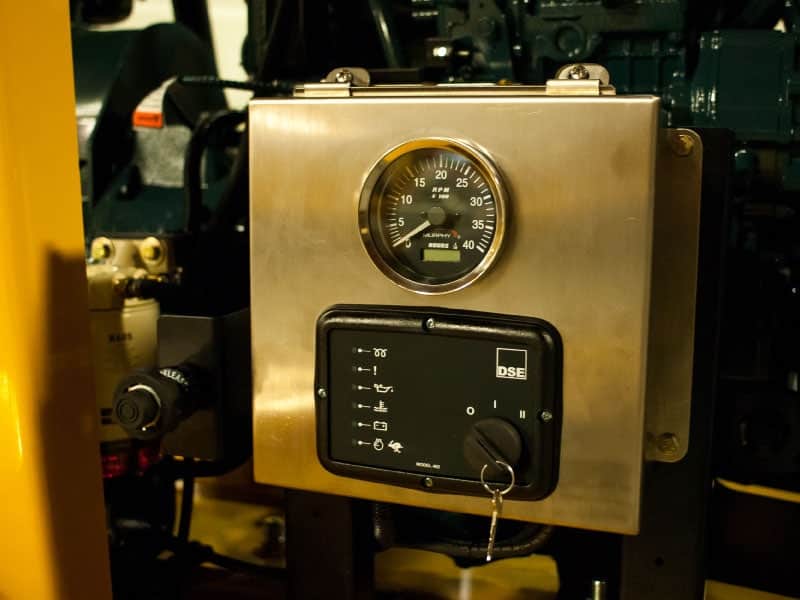

- DSE control panel for easy operation and engine speed monitoring
- Optima spiral cell technology for superior starting performance
Trailer
- Powder coated trailer and components for durability
- Front stone guard to protect engine during transport
- 115-gallon fuel tank

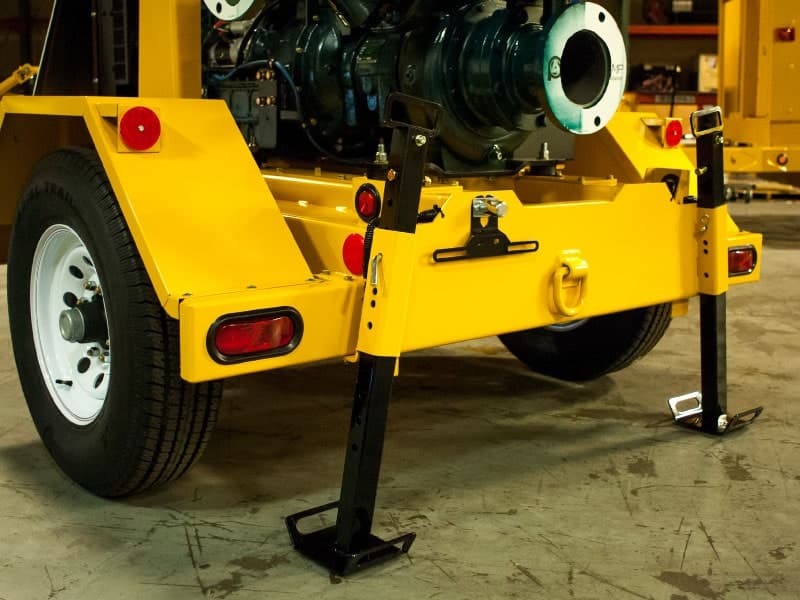

- Rear drop legs for stability during operation
- Single pick lifting eye
Specifications
| Pump | |
|---|---|
| Pump | Pioneer Prime 66S10 |
| Description | Bare shaft, frame-mounted, fully automatic dry priming, vacuum assisted, run dry, heavy duty solids handling pump |
| Size | 6″ x 6″ |
| Max flow rate | 2600 gpm (9842 lpm) |
| Max lift | 140′ (42 meters) |
| Max solids handling | 3″ (76mm) |
| Max operating speed | 2200 rpm |
| Priming system | UltraPrime™ with vacuum prime assitNo priming water required in pump or suction lines |
| Vacuum pump | Mechanically-driven diaphram style continuous vacuumCorrosion resistant aluminum casing with buna-n elastomer |
| Suction connection | 6″ Class 150 ANSI flanges |
| Discharge connection | 6″ Class 150 ANSI flanges |
| Impeller | Enclosed type, non-clog3″ Spherical solids handling capabilityASTM A536 Grade 65-45-12 ductile iron |
| Volute | Tangential discharge with cleanoutClockwise rotation (viewed from driven end)ASTM A536 Grade 65-45-12 ductile iron |
| Mechanical seal | Single seal with tungsten carbide seal facesViton elastomers300 Series stainless steel hardware & springSeal system designed for infinite dry running |
| Pump & drive end bearings | Single-row ball |
| Bearing housing | ASTM A48 Class 30/35 gray iron |
| Shaft | 17-4 PH corrosion resistant stainless steel |
| Engine | |
| Model | Kubota V3600T |
| Type | Vertical 4-cycle liquid cooled dieselTurbochargedVariable speed |
| Max shaft power | 70 hp (52 kW) |
| Fuel type | ULSD |
| Fuel capacity | 115 gal (435 L) |
| Fuel consumption | 3.5 gph @ 2200 rpm (maximum)2.3 gph @ 1800 rpm |
| Fuel filter | Raycor 660R2 with 2 Micron element |
| Dimensions | |
| Size (L x W x H) | 126″ x 73″ x 80″ (3200 x 1854 x 2032 mm) |
| Estimated dry weight | 3330 lb (1510 kg) |
Model #
ES-PP60
Manufacturer
ESI
Category
Pumps
Highlight Specs
Engine HP: 70hp
Max GPM: 3000
Max Head (ft): 140
Max Solids Handling: 3"
Priming System: Auto-Priming
Configuration: Trailer
