20KW Generator
Details

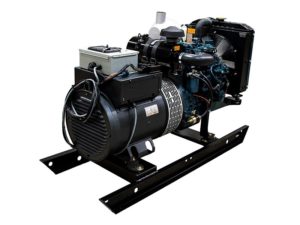

Powered by a Kubota diesel engine, this durable generator set produces 20.0 kilowatts of prime power output. The engine and generator are directly coupled and mounted on a rugged steel skid. All components are suitable for prime or intermittent usage. The entire set is thoroughly load tested prior to shipment. UL approved construction.
Standard engine
- Kubota diesel model V2203-M-BG, in-line, four-cylinder engine
- Electronic speed governing provides isochronous speed regulation, no load to full load
- EPA “Interim tier 4”
- Liquid cooled with industrial grade radiator and belt-driven blower fan
Controls & accessories
- Key start panel with oil pressure, coolant temperature, hour meter, and glow plug indicator
- Manual safety shutdow override, fuse protection
- Safety shutdowns, energized-to-run, for low oil pressure/high coolant temperature
- Four anti-vibration mounts between generator set and base frame
- Electric fuel transfer and priming pump (12 VDC)
- Battery cables for 12 VDC starting system
Specifications
| Engine technical information | |
|---|---|
| Manufacturer | Kubota |
| Model | V2203-M-BG |
| Cylinders | 4 |
| Bore x Stroke | 3.43 x 3.64 in |
| Displacement | 2197cc (134 cu in) |
| Comp. ratio | 22:1 |
| Engine weight | 430 lb dry |
| Fuel system | |
| Fuel type | #2 Diesel or #1 ULSD |
| Injection pump | Bosch PFR |
| Nozzle type | Throttle type |
| Transfer pump | Electric, 12 VDC |
| Fuel lift | 1 meter (3.3 ft) |
| Suction fitting | 1/4″ Male NPT |
| Return fitting | 1/4″ Male NPT |
| Specific fuel consumption | 1.80 gph @ full load0.92 gph @ half load(Actual fuel consumption varies with site conditions and fuel energy content.) |
| Lube oil system | |
| Grade | API classification CF or other approved.(See owner’s manual) |
| Capacity | 2.0 US gal |
| Filter | Full flow, spin on |
| Air intake system | |
| Filter | Replaceable element |
| Combustion air | 55.7 cfm |
| Total system restriction | 20″ H20 |
| DC Electrical system | |
| Starter | 12V, 2.0 kW |
| Alternator | 12V, 40 Amp |
| Glow plugs location | Combustion chambers |
| Battery required | 12V 650 CCA equiv, min |
| Run solenoid | 12V Energize to run |
| Ancillary equipment | |
| Mounting | Steel base with mounting holes |
| Isolators | Four composite mounts |
| Generator technical information | |
| Manufacturer | Mecc Alte |
| Model | ECO 32 (standard) |
| Construction | Four pole, brushless, open drip-proof (IP23), single bearing |
| Excitation | Dedicated auxilliary winding |
| Cooling air flow | 251 cfm |
| Leads | 12 |
| 60 Hz voltages (continuous) | 240 1-phase: 73.2 Amps208 3-phase: 61.0 Amps480 3-phase: 26.5 Amps |
| Power factor | Single phase ratings @ 1.0 PFThree phase ratings @ 0.8 PF |
| Voltage reg. | DSR digital type +/- 1% NL -> FL |
| Temperature rise | 105C rise prime |
| Tel. interference | THF <2% |
| Winding pitch | Two thirds |
| Control system | Self-excited |
| Cooling system | |
| Radiator | Finned tube type |
| Material | Copper core, soldered tanks |
| Pressure | 12.9 psi max |
| Fan type | Blower, nylon |
| Water pump | Gear case mounted |
| Type | Centrifugal, belt drive |
| Thermostat | Wax pellet type |
| Recommended coolant | 50/50Use low silicate ethylene glycol and high quality water. Consult manufacturer for details. |
| Cooling air required | 1502 cfm |
| Exhaust system | |
| Muffler type | Industrial grade |
| Mounting | Vertical with up outlet |
| Restriction | 1.5 in Hg max |
| Weight & dimensions | |
| Please contact salesperson for weight and dimensions. |
Accessories
Coming soon…
Model #
KPG-20
Manufacturer
ESI
Category
Generators
Highlight Specs
Continuous Three-Phase Output (KVA): 22
Output Phase: 1Ø or 3Ø
Rated Speed (60hz): 1800 RPM
Engine: Kubota V2203
Emission Certification: EPA Tier 3
Configuration: Open Skid
