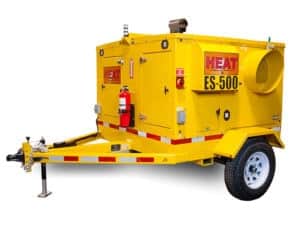

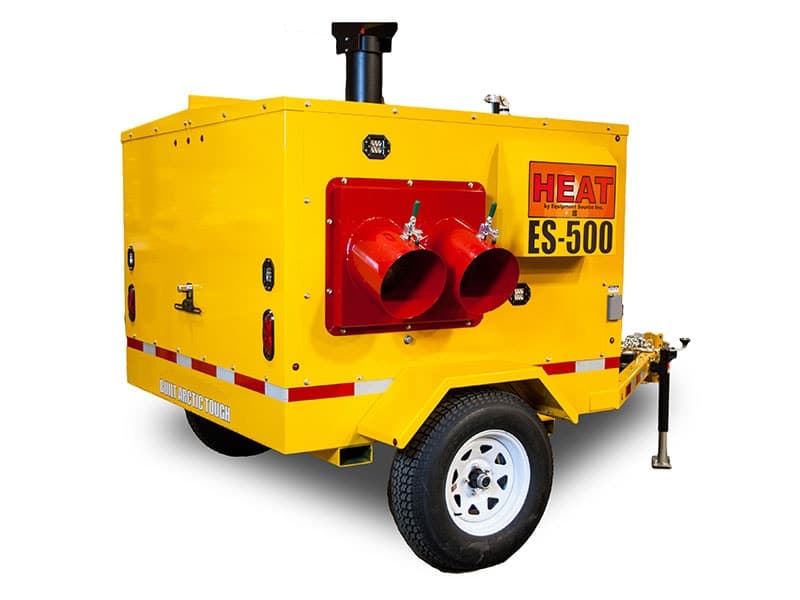

Self-Contained Mobile Industrial Heater (ES500)

Details

The compact, yet powerful ES500 indirect fired air heater outputs 390,000 BTU/hr at up to 2500 CFM. It is diesel powered and operates for 25 hours between refuels.

At the heart of this portable heating unit is a Flagro 400 indirect fired heater powered by a Kubota engine with a Mecc Alte generator end. These main components are housed in a durable steel cabinet designed with safety and convenience in mind. The cabinet features include 200% secondary fluid containment, emergency shutdown switch, seven bright LED floodlights, and easy access to commonly serviced components. The heater is light-weight and mounted on a 3500 lb single-axle trailer for easy mobility.

The ES500 industrial heater is engineered for reliable performance in extremely low temperatures and proven on Alaska’s North Slope oil fields and in northern Canada.

See for yourself how ESI heaters are the best heating solution for oilfield, construction, and agriculture worksites. Get one today!

Features & benefits

  • 390,000 BTU with up to 2500 CFM
  • 25 hour run time
  • Kubota engine with Mecc Alte generator end

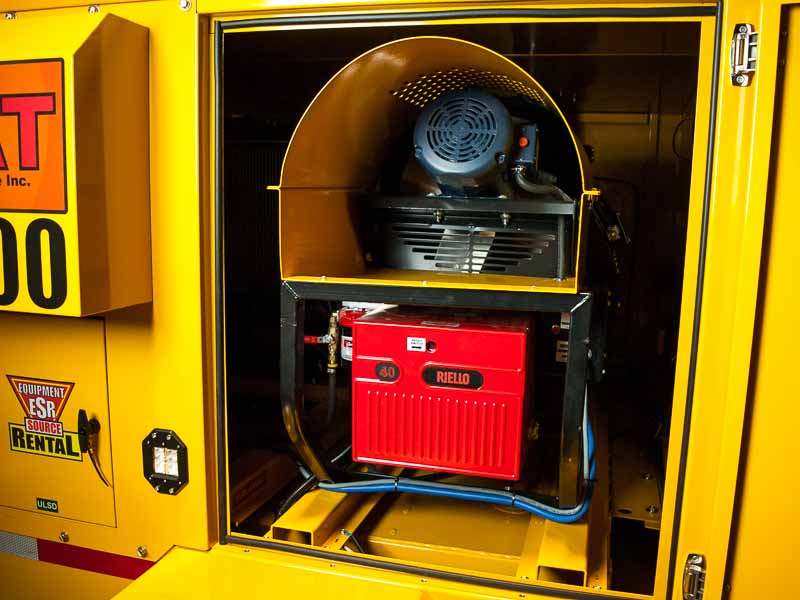

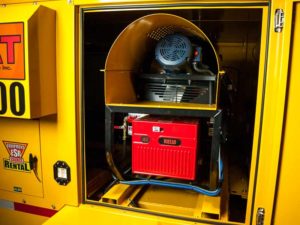

  • Flagro FVO-400 heater with Riello 40 burner

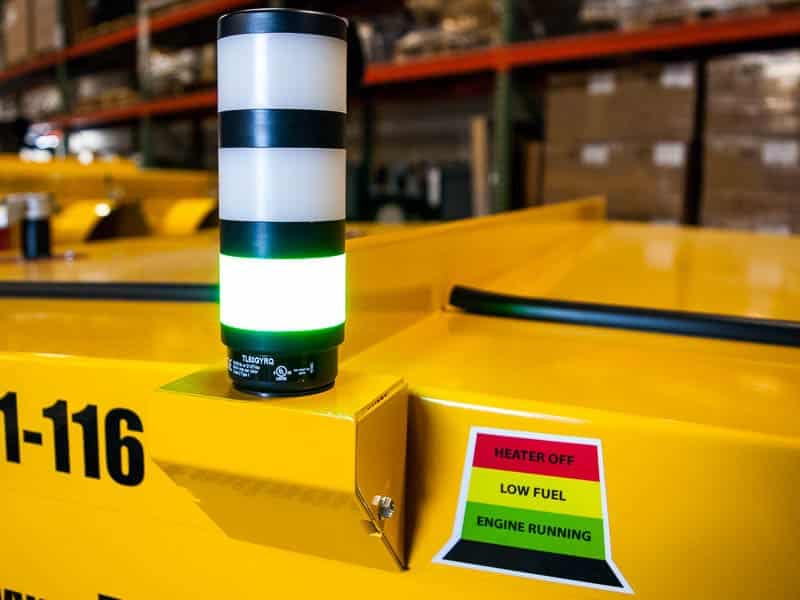

  • Three-color beacon light indicates engine, burner, fuel status

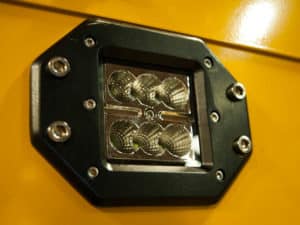

  • Seven bright 18W (1260 lumens) LED exterior floodlights

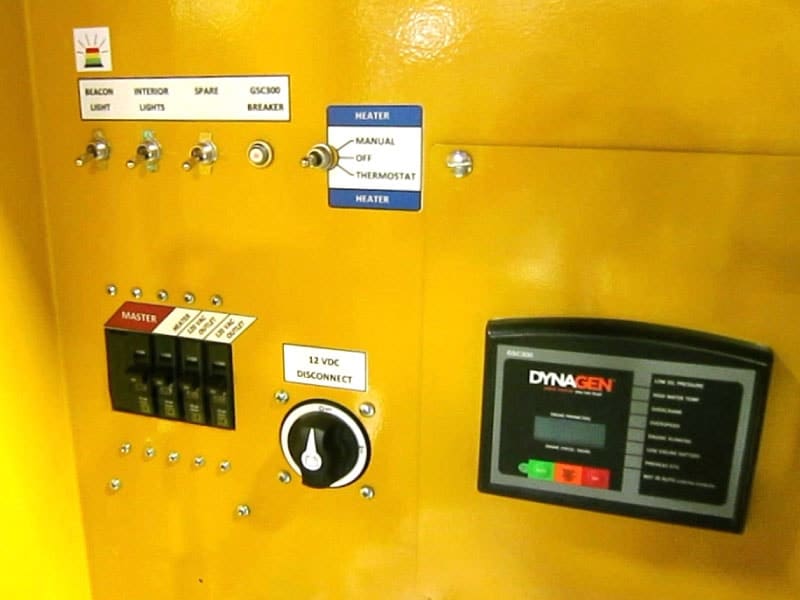

  • Interior and control panel lights
  • 120V GFCI power outlet
  • Emergency shutdown switch
  • Forklift pockets
  • Light 2332 lb dry, 2930 lb wet
  • Input jack for optional remote thermostat

Quality construction

  • 100% 304 stainless steel fire tube & heat exchanger for quality that is second to none
  • Environmentally responsible construction that features 200% secondary fluid containment

Easy service by design

  • Easy access engine compartment facilitates ease of service functions
  • Standard industrial components ensure widespread parts availability

Available mounting

  • Trailer mounted on 3,500 lb axle

Options

  • Remote thermostat to adjust heater output

Specifications

Heater
Max burner output 390,000 BTU/hr
Burner Riello 40 F10
Heat exchange material 304 Stainless
Fan motor 3/4 hp, 120V
Fan capacity 2500CFM @ 1/2 in wgOptional 2800CFM @ 2.0 in wg
Duct outlets Dual 12 in
Generator
Engine Kubota D1005
Generator Mecc Alte
Engine continuous power 6 kW
Main breaker rating 40A
Voltage 120V
Auxillary power receptacle 20A, 120V, 60Hz
Fuel storage
Capacity 82 gal [424L]
Seconday containment 200%
Fuel type
ES500 ULSD
Heater burn rate
Rate 3.25 gph [12.3 lph] max
Dimensions
Trailer shipping W x L x H 80 x 137 5/8 x 85 3/4 in
Air cargo shipping W x L x H 60 x 92 x 60 in
Weight
Dry with trailer 2322 lb
Wet with trailer 2930 lb

Accessories

Heater ducting

  • Jetflex by Engineered Performance Ducting

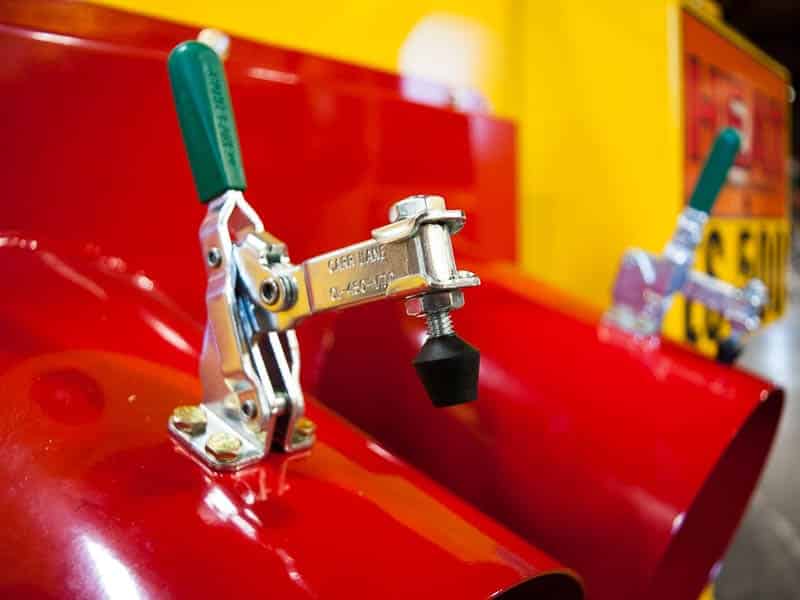

  • ES500 outlet: 2 x 12″, 1 x 16″, 1 x 20″ diameter
  • ES500 inlet: 1 x 20″ diameter
  • Available in 25 foot length

More info…

Product Support Page

Model #

ES500

Manufacturer

ESI

Category

Heaters

Industry

Construction, Emergency Prepardness, Lodges, Mining, Oil & Gas, Remote Logistics, Telecommunications

Available for Rent in ALASKA

Yes

Available for Rent in North Dakota

Yes

Available for Sale in Alaska

Yes

Available for Sale in North Dakota

Yes

9 Highlight Specs

Max BTU Output: 390,000 BTU/hr
Max Air Flow: 2,500 CFM
Fuel Tank Size: 80 Gal
Fuel Type: Diesel
Max Fuel Consumption: 3.25 GPH
Run Time: 24 hrs +
Oil Service Interval: 200 hrs
Generator: 6KW
